Double side filament tape for door seal rubber

Construction:
______________________________________________________________________________
Adhesive: Hot Melt Pressure Sensitive
Face adhesive(1): 0.095mm( thickness)
Reinforcement: Glass yarn
Backing adhesive(2): 0.095mm( thickness)
Release liner: 0.075mm
Glassine release paper
Total Thickness: 0.265mm
(1)Face adhesive on outside face exposed when opened(2)Backing adhesive on the inside face, exposed when peeling off the release paper.
______________________________________________________________________________
Typical Physical Properties
Initial tack: 14#
Peel adhesion at 180° (SUS): 50N/25mm
Holding Power: ＞72h
Elongation: 8%
______________________________________________________________________________
Note:
Typical data for reference, not for specification purpose.
Little knowledge for tape application
- The laminated adhesion depends on the contact area therefore a proper pressure & time helps improve the
adhesion strength.
-The substrates should be clean without oil, clean using solvents when necessary.
-The best laminate temperature is room temperature, it becomes hard when temperature approach 0℃ as the
adhesive film becomes film.
Warm Prompt: above is one kind of our double side filament tape, you could customed . Pls feel free to contact me onSkype : Vincent.brush22

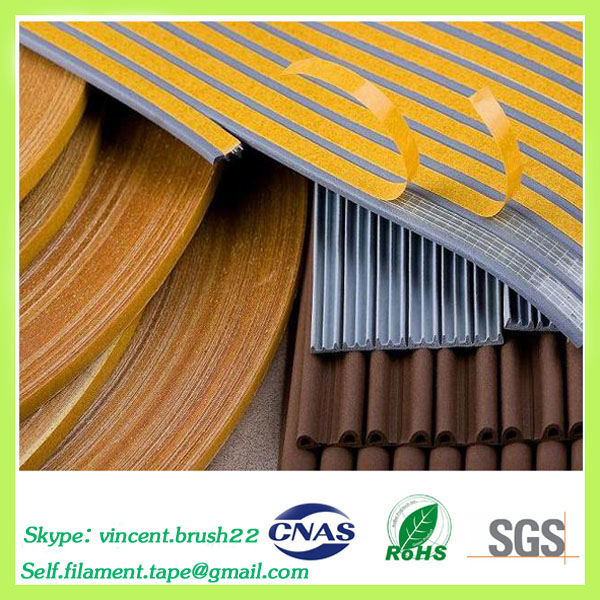

Double side filament tape for door seal rubber Images
